VTWS-132、VTWS-135系列中间型宽槽滑块单元

孔径

型号

轴承芯件-编号

基本动态额定载荷

磅/牛

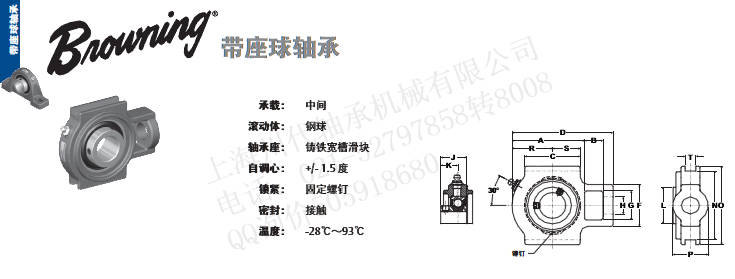

尺寸（英寸/毫米）VTWS 100 系列中间型宽槽滑块单元 － 固定螺钉锁定

重量磅/

公斤

A

B

C

D

F

G

H

芯

J

K

L

N

O

P

毂

R

S

T

英寸

3/4

VTWS-112

VS-112

2611

11614

3

76.2

5/8

15.9

2-1/4

57.2

4

101.6

1-7/8

47.6

1-1/4

31.8

3/4

19.1

1-1/16

27.0

23/32

18.3

1-3/16

30.2

3

76.2

3-1/2

88.9

1-3/8

34.9

1-7/16

36.5

1-1/8

28.6

17/32

13.5

1.6

.73

7/8

15/16

1

VTWS-114

VTWS-115

VTWS-116

VS-114

VS-115

VS-116

2801

12459

3-5/64

78.2

5/8

15.9

2-1/4

57.2

4-3/32

104.0

1-7/8

47.6

1-1/4

31.8

3/4

19.1

1-7/64

28.2

49/64

19.4

1-3/8

34.9

3

76.2

3-1/2

88.9

1-1/2

38.1

1-9/16

39.7

1-1/8

28.6

17/32

13.5

1.7

.77

1-1/8

1-3/16

1-1/4

VTWS-118

VTWS-119

VTWS-120S

VS-118

VS-119

VS-120S

4381

19487

3-3/8

85.7

3/4

19.1

2-1/2

63.5

4-5/8

117.5

2-1/8

54.0

1-7/16

36.5

7/8

22.2

1-5/32

29.4

25/32

19.8

1-19/32

40.5

3-1/2

88.9

4

101.6

1-3/4

44.5

1-25/32

45.2

1-1/4

31.8

17/32

13.5

2.4

1.09

1-1/4

1-3/8

1-7/16

VTWS-120

VTWS-122

VTWS-123

VS-120

VS-122

VS-123

5782

25718

3-3/4

95.3

3/4

19.1

2-3/4

69.9

5

127.0

2-1/8

54.0

1-7/16

36.5

7/8

22.2

1-9/32

32.5

55/64

21.8

1-55/64

47.2

3-1/2

88.9

4

101.6

1-3/4

44.5

2

50.8

1-3/8

34.9

17/32

13.5

3.1

1.41

1-1/2

VTWS-124

VS-124

7340

32648

4-7/32

107.2

3/4

19.1

3-1/4

82.6

5-19/32

142.1

2-3/4

69.9

1-15/16

49.2

1-1/8

28.6

1-27/64

36.1

15/16

23.8

2-1/16

52.4

4

101.6

4-1/2

114.3

2-1/8

54.0

2-3/16

55.6

1-5/8

41.3

11/16

17.5

4.7

2.13

1-11/16

1-3/4

VTWS-127

VTWS-128

VS-127

VS-128

7901

35144

4-3/8

111.1

3/4

19.1

3-1/4

82.6

5-3/4

146.1

2-3/4

69.9

1-15/16

49.2

1-1/8

28.6

1-7/16

36.5

61/64

24.2

2-19/64

58.3

4

101.6

4-1/2

114.3

2-1/8

54.0

2-1/4

57.2

1-5/8

41.3

11/16

17.5

5.2

2.36

1-15/16

2

VTWS-131

VTWS-132S

VS-131

VS-132S

7889

35090

4-17/32

115.1

3/4

19.1

3-3/8

85.7

5-29/32

150.0

2-3/4

69.9

1-15/16

49.2

1-1/8

28.6

1-35/64

39.3

1-3/64

26.6

2-15/32

62.7

4

101.6

4-1/2

114.3

2-1/8

54.0

2-5/16

58.7

1-11/16

42.9

11/16

17.5

5.4

2.45

2

2-3/16

VTWS-132

VTWS-135

VS-132

VS-135

9752

43377

5-3/32

129.4

1

25.4

3-3/4

95.3

6-27/32

173.8

3-5/8

92.1

2-1/2

63.5

1-3/8

34.9

1-21/32

42.1

1-7/64

28.2

2-23/32

69.1

5-1/8

130.2

5-3/4

146.1

2-1/2

63.5

2-9/16

65.1

1-7/8

47.6

1-1/16

27.0

8.0

3.63

安装锁销和润滑嘴
把锁销放入轴承座的润滑孔中， 确保其坐入外圈的凹窝中。
把润滑嘴拧入轴承座的润滑孔中， 直到其紧贴不动， 然后松
